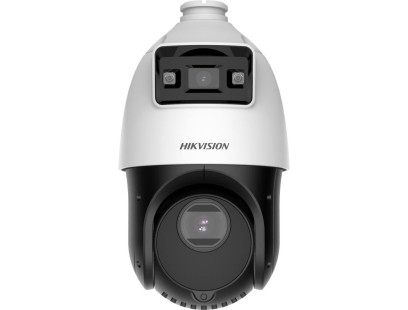

Hikvision TandemVu PTZ DS-2SE4C425MWG-E/14(F0)

Patvirtinimai
ApsaugaIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection

Garsas
Garso bitų dažnis64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
Garso suspaudimasG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Garso atrankos dažnisMP2L2: 16 kHz, 32kHz, 48 kHz,AAC-LC: 16 kHz, 32kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32kHz, 48 kHz,MP3: 8 kHz, 16 kHz, 32kHz, 48 kHz
Pašalinių garsų šalinimasyes

Kamera
Diena&NaktisICR
Vaizdo jutiklis[Bullet channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
Maks. rezoliucija[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. apšvietimas[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Užrakto greitis1 s to 1/30,000 s
Lėtas užraktasyes
Priartinimas[PTZ channel] 25 × optical, 16 × digital

Išmaniosios funkcijos
Veido atpažinimasDetects up to 5 faces simultaneously,Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage method. Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

Funkcijos
Pagrindinės funkcijosMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,audio exception detection
Sąsaja [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, strobe light and audio alarm, and PTZ actions (such as preset, patrol scan, pattern scan)
Išmaniosios funkcijosaudio exception detection,region exiting detection,region entrance detection,intrusion detection,Line crossing detection

Bendrieji duomenys
Rasos šalinimasDemist by heating the glass
MatmenysØ166 mm × 294.8 mm (Ø6.5" × 11.6")
Pagrindinės funkcijosmirror, password protection, watermark, IP address filter
MedžiagaADC12
Darbo sąlygos-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
Energija12 VDC, 3.33 A PoE: IEEE 802.3at, 42.5 to 57.2 V, 0.6 A
SvorisApprox. 3.0 kg (16.5 lb.)

Apšvietimas
Išmanus papildomas apšvietimasYes
Papildomo apšvietimo diapazonas[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
Papildomo apšviešimo tipas[PTZ channel]: IR; [Bullet channel]: White Light

Nuotrauka
Diena/Naktis režimasday, night, auto, scheduled-switch
Rūko šalinimasDigital defog
Nuotraukų pagražinimasBLC,HLC,3D DNR
Nuotraukos parametrų keitiklisYes
Vaizdo nustatymaisharpness,saturation,brightness,contrast
Vaizdo stabilizavimasEIS
Privatumo kaukė[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regioninė ekspozicijayes
Regioninis fokusavimasyes
SNR＞52dB
Wide Dynamic Range (WDR)120 dB WDR

Sąsaja
Signalizacija1 alarm input, 1 alarm output
Garsas1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Įmontuotas mikrofonas2 built-in microphones,picking up sounds in the radius up to 8 meters
Įmontuotas garsiakalbis1 built-in speaker, with effective distance reaching max. 8 meters
Interneto sąsajaRJ45, self-adaptive 10M/100M Ethernet port
Saugyklos vietaBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimasyes

Objektyvas
Diafragma[Bullet channel]: F1.0; [PTZ channel]: F1.6
FOV[Bullet channel] horizontal field of view: 96.1°, vertical field of view: 52.1°, diagonal field of view: 113.3°, [PTZ channel] horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8°
Židinio nuotolis[Bullet channel] 2.8 mm, [PTZ channel] 5 to 125 mm
Fokusavimasauto,manual,semi-auto
Priartinimo greitis[PTZ channel]: approx. 2.3 s

Tinklas
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
KlientasiVMS-4200,HikCentral Pro,Hik-Connect
Vidinė atmintisNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
ProtokolaiDHCP,FTP,HTTPS,TCP/IP,ICMP,HTTP,SFTP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets
Saugumas802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
Tiesioginis vaizdo žiūrėjimas20
Naudotojas/prievadas32
NaršyklėIE 11, Chrome 80+, Firefox 80+, Safari 13+

PTZ
3D pozicijayes
Movement Range (Pan)360° endless
Movement Range (Tilt)[Bullet channel] 9° to 21° (manually adjust), [PTZ channel] -15° to 90°
PTZ būsenos vaizdavimasyes
Pan greitisPan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
Park Actionpreset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan
Patruliavimas8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas4 pattern scans
Išjungimo atmintisyes
Išsaugotų nustatymų sustabdymasyes
Iš anksto išsaugoti nustatymai300
Proporcingas Panyes
Užduočių grafikasPreset,pattern scan,patrol scan,tilt scan,auto scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Tilt greitisTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Vaizdas
H.264 tipasmain profile,baseline profile,high profile
H.265 tipasmain profile
Pagrindinis srautas[Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Region of Interest (ROI)8 fixed regions for each stream
Scalable Video Coding (SVC)yes
Antrinis srautas[Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)[PTZ channel]:50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas[Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)[PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo bitų dažnis32 kbps to 16384 kbps
Vaizdo glaudinimasH.265,H.264,MJPEG
