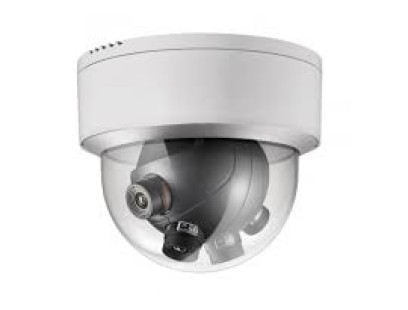

Hikvision PanoVu DS-2CD6986F-H

Sensorius

1/1.8’’   Progressive Scan CMOS

Min. apšvietimas

0.002 Lux @ (F2.2, AGC ON)

Ekspozicijos greitis

1/25s   ~ 1/100,000s

Objektyvas

5mm×4,Pan: 180°, Tilt:78.4°

Objektyvo montavimas

CS

Reguliavimas

Pan: 0°~360°, tilt: 45°~90°

Diena / naktis

IR   Cut Filter

WDR

Digital   WDR

Vaizdo suspaudimas

H.264/MJPEG

H.264 tipas

Baseline Profile / Main   Profile / High Profile

Vaizdo sparta

32 Kbps – 16 Mbps

Garso suspaudimas

G.711/G.722.1/G.726/MP2L2/AAC/PCM

Garso sparta

64Kbps(G.711) /   16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)

Maks. raiška

4096× 1800

Kadrai / sek.

Main Stream: 50Hz: 25fps(4096   × 1800,3840× 1680)

60Hz: 30fps(4096 × 1800, 3840×   1680)

Sub Stream:  50Hz: 25fps (704× 320) 60Hz: 30fps(704× 320)

Main Stream: 50Hz: 25fps(2400   × 3840,1200 × 1920);

60Hz: 24fps(2400 × 3840),30fps(1200   × 1920)

Sub Stream:  50Hz: 25fps(480 × 768,320× 512)

60Hz: 30fps(480 × 768,320×   512)

Vaizdo gerinimas

BLC/3D DNR/ROI/Defog

Vaizdo nustatymai

Saturation, Brightness,   Contrast, Sharpness adjustable by client software or web browser

Dienos/nakties perjungimas

Auto/Schedule/Triggered   by Alarm In

Vaizdo perdengimas

LOGO picture can be overlaid   on video with 128x128 24bit bmp format

Tinklinis talpinimas

NAS (Support   NFS,SMB/CIFS), ANR

Pavojaus signalo sukėlimas

Motion detection,   Tampering alarm, Network disconnect, IP address conflict, Storage exception

Protokolai

TCP/IP, UDP, ICMP, HTTP, HTTPS,   FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP,   QoS, IPv6, Bonjour

Apsauga

User Authentication, Watermark, IP address filtering,   Anonymous access

Standartai

ONVIF(PROFILE S,PROFILE   G),PSIA,CGI,ISAPI

Garsas

1-ch 3.5 mm audio in( Mic   in/Line in)/out interface

Ryšio sąsaja

1 RJ45 10M/100/1000M Ethernet   port, 1 RS-485 interface

Pavojaus jungtys

1 input, 1 output (up to   DC24V 1A or AC110V 500mA)

Vidinė atmintis

Built-in Micro   SD/SDHC/SDXC slot, up to 128 GB

Smūgio apsauga

IK10

Darbo sąlygos

-30°C – 60 °C (-22 °F – 140 °F), Humidity 95% or less   (non-condensing), -H: -40 °C – 60 °C

Maitinimas

12 V DC ± 10%/PoE (802.3at); (24 V AC )

Energinos suvartojimas

22W
