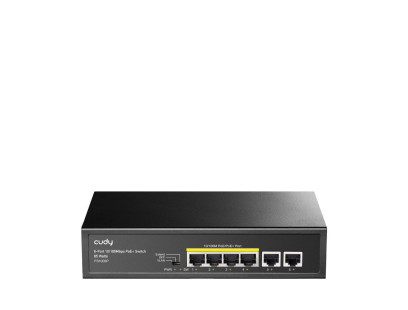

6 prievadų komutatorius CUDY FS1006P (Nevaldomas, PoE)

Pagrindinis
Sąsajos10/100 Mbps RJ45 Ports: 2, 10/100 Mbps RJ45 PoE Ports: 4
Didžiausia galia viename PoE portuose30W
PoE porto pastabosThe PoE ports comply with IEEE 802.3at/af standards.
Išplėstinio režimo prievadai#1~#4
VLAN režimo prievadai#1~#4
LEDPower, Link/ACT of Each Ethernet Port
DIP režimas (SW)Power Input: AC Inlet
Fiziniai mygtukaiVLAN/Default/Extend DIP Switch
VeikimasCopper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 250 meters at 10 Mbps
Varinės greičio ir atstumo pastabos250-meter transmission is only available on the Extend Mode ports.
MAC adresų lentelė1024
Didžiausia perjungimo talpa1.2 Gbps
Didžiausias siuntimo greitis0.8928 Mpps
Paketų buferis448 Kbit
Maitinimo metodaiAC Input: 100 V - 240 V, 50 Hz, Output: 52 V, 1.25 A
Maitinimas65W
Didžiausia galia neįtraukiant PoE1W
Perjungimas802.3 Protocols: 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
PatikimumasGrounding Methods: Three-Prong Plug, Grounding Point
AplinkosaugaOperating Temperature: 0~40 ℃ (32~104 ℉), Storage Temperature: -40~70℃ (-40~158 ℉), Operating Humidity: 10~90% non-condensing, Storage Humidity: 10~95% non-condensing
MechanikaDimension: 200×118×44 mm (7.87×4.65×1.73 inches)
Korpuso medžiagasMetal
MontavimasDesktop, Wall-mount
