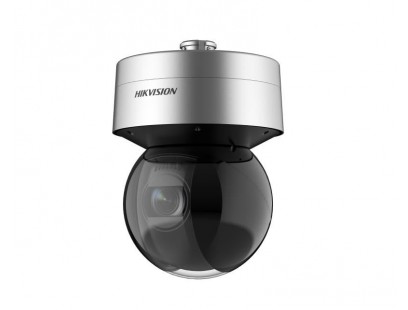

Hikvision PTZ DS-2DF7A436IXG-ELY

Kamera
Sensorius1/1.8＂ progressive scan CMOS
Maks. rezoliucija2688 × 1520
Min. apšvietimasColor: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with IR
Užrakto greitis1/30 s to 1/30,000 s
Diena&NaktisICR
Priartinimas36 × optical,16 × digital
Lėtas užraktasyes

Lęšis
Židinio nuotolis6.0 mm to 216 mm
FOVHorizontal field of view: 59.1° to 2°, vertical field of view: 34.1° to 1.1°, diagonal field of view: 67.1° to 2.3°
FokusavimasAuto,semi-auto,manual,rapid focus
DiafragmaF1.2
Priartinimo greitisApprox. 4.5 s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-20° to 90° (auto flip)
Pan greitisPan speed: configurable from 0.1° to 550°/s, preset speed: 550°/s,Up to MAX 700°/s
Tilt greitisTilt speed: configurable from 0.1° to 300°/s, preset speed 300°/s,Up to MAX 300°/s
Proporcingas Panyes
Iš anksto išsaugoti nustatymai300
Išsaugotų nustatymų sustabdymasyes
Patruliavimas8 patrols, up to 32 presets for each patrol
Park ActionPreset,patrol scan
3D pozicijayes
PTZ būsenos vaizdavimasyes
Užduočių grafikasPreset,patrol scan,dome reboot,dome adjust,aux output
Išjungimo atmintisyes

Vaizdas
Pagrindinis srautas50 Hz: 100 fps (1920 × 1080) 50 fps (2688 × 1520, 2560 × 1440, 1280 × 720) 60 Hz: 120 fps (1920 × 1080) 60 fps (2688 × 1520, 2560 × 1440, 1280 × 720) *High frame rate is supported under monitoring mode only.
Antrinis srautas50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo suspaudimasH.265||H.264||MJPEG
Vaizdo bitų greitis32 Kbps to 16384 Kbps
H.264 tipasbaseline profile||main profile||high profile
H.265 tipasmain profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)fixed region

Garso
Garso suspaudimasG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC)

Tinklas
ProtokolaiIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,WebSocket,WebSockets
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
APIONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Vidinė atmintisNAS (NFS, SMB/CIFS)
KlientasiVMS-4200,Hik-Connect,HikCentral Pro
NaršyklėIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Nuotrauka
Diena/Naktis režimasday, night, auto, scheduled-switch
SNR≥52dB
Rūko šalinimasOptical defog
Wide Dynamic Range (WDR)150 dB
Vaizdo stabilizavimasEIS (Built-in gyroscope to improve EIS performance)
Nuotraukų pagražinimasBLC, HLC, 3D DNR
Privatumo kaukėmask color or mosaic configurable,24 programmable polygon privacy masks
Regioninis fokusavimasyes
Regioninė ekspozicijayes

Sąsaja
Vaizdo išvestisCVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector
Interneto sąsajaRJ45, self-adaptive 10M/100M Ethernet port
Garso1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
Signalizacija7 alarm inputs, 2 alarm outputs
RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
Saugyklos vietaBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB.

Funkcijos
Pagrindinės funkcijosMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output
Išmaniosios funkcijosLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection
SąsajaAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, Audible Warning,etc.
Išmanus sekimasManual tracking,auto-tracking

Išmaniosios funkcijos
Veido atpažinimasSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features, 14 human body features and 8 vehicle features
Kelių eismo ir transporto priemonių aptikimasSmart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Pagrindinis
MaitinimasPoE (PoE (bt)), Class 8, 42.5-57V, max. 90W,36 VDC ± 25%, max. 90 W
DydisØ214.95 mm × 297.1 mm (Ø8.46" × 11.7")
SvorisApprox. 5 kg (11.02 lb.)
Darbo sąlygosTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
Pagrindinės funkcijosmirror, password protection, watermark, IP address filter
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Patvirtinimai
SaugumasCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),IC VoC (ICES-003: Issue 6, 2019),RCM (AS/NZS CISPR 32: 2015),KC (KN 32: 2015, KN 35: 2015)
AplinkosaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ApsaugaLightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10
Apsauga nuo korozijosNEMA 4X (NEMA 250-2018)
