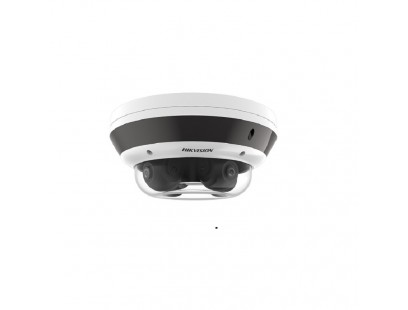

Hikvision PanoVu DS-2CD6D44G1H-IZS F2.8-12 (4 x 4MP, IR iki 30m, DarkFighter)

Kamera
Sensorius1/3" Progressive Scan CMOS
Maks. rezoliucija2688 × 1520
Min. apšvietimasColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Užrakto greitis1 s to 1/100,000 s
Day & NightIR cut filter
Kampo keitimasPan: -180° to 180°,tilt: 0° to 135°,rotate: 0° to 355°

Lęšis
Lęšio tipasVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.7° to 17.6°, diagonal FOV 122.1° to 35.8°
Lęšio montavimasØ14
FokusavimasSemi-auto,Manual
DiafragamaF1.6

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 25 fps (2688 × 1520), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Scalable Video Coding (SVC)H.264 encoding
Region of Interest (ROI)4 fixed regions for each stream
Tikslinis apkarpymasYes

Garsas
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientasiVMS-4200,Hik-Connect,Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka
Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Vaizdo stabilizavimasEIS
Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Garsas
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection,object removal detection,scene change detection
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Pagrindinis
Sistemos parametrai
12 VDC ± 20%, 1.67 A, max. 20 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.55 A to 0.41 A, max. 23.4 W
DydisØ290 mm × 148 mm (Ø11.42" × 5.8")
Pakuotės dydis453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
SvorisApprox. 4.7 kg (10.3 lb.)
Svoris su įpakavimuApprox. 7.7 kg (16.8 lb.)
Sandėliavimo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosflash log,password protection,one-key reset

Patvirtinimai
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
