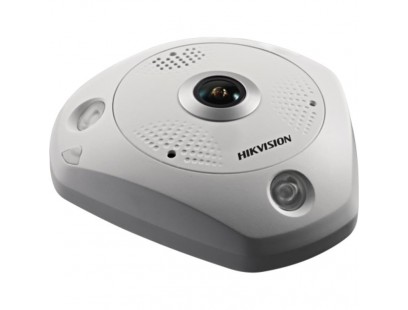

Hikvision fisheye DS-2CD6365G0-IS(B) F1.27
- Kamera
- Sensorius1/1.8" Progressive Scan CMOS
- Maks. rezoliucija3072 × 2048
- Min. apšvietimasColor: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
- Užrakto greitis1 s to 1/100,000 s
- Day & NightIR Cut Filter
- Lęšis
- Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360° (ceiling mount), 360° (table mount)
- Lęšio montavimasM12
- DiafragamaF2.6
- DORI
- DORID: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m
- Apšvietimas
- Papildomo apšviešimo tipas3 IR LEDs, each LED is independently controlled
- Papildomo apšvietimo diapazonasUp to 15 m
- IR bangos ilgis850 nm
- Vaizdas
- Pagrindinis srautas
Fisheye View:
50 Hz: 25 fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60 Hz: 30 fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
180 Panorama View:
50 Hz: 25 fps (2048 × 1536, 1920 × 1080)
60 Hz: 30 fps (2048 × 1536, 1920 × 1080)
Panorama View:
50 Hz: 25 fps (2048 × 1536, 1920 × 1080)
60 Hz: 30 fps (2048 × 1536, 1920 × 1080)
4PTZ:
50 Hz: camera 01: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
camera 02: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
t camera 03: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
t camera 04: 25 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
60 Hz: camera 01: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
t camera 02: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
t camera 03: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
t camera 04: 30 fps (1024 × 768, 640 × 480, 640 × 360, 320 × 240)
Fisheye + 3PTZ:
50 Hz: camera 01: 25 fps (2048 × 2048, 1024 × 1024)
t camera 02: 25 fps (1024 × 768)
t camera 03: 25 fps (1024 × 768)
t camera 04: 25 fps (1024 × 768)
60 Hz: camera 01: 30 fps (2048 × 2048, 1024 × 1024)
t camera 02: 30 fps (1024 × 768)
t camera 03: 30 fps (1024 × 768)
t camera 04: 30 fps (1024 × 768)
4PTZ Fusion:
50 Hz: 25 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768)
60 Hz: 30 fps (2048 × 1536, 1600 × 1200, 1280 × 960, 1024 × 768)
- Antrinis srautas
Fisheye View:
50 Hz: 25 fps (720 × 720, 720 × 480)
60 Hz: 30 fps (720 × 720, 720 × 480)
180 Panorama View:
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Panorama View:
50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Fisheye + 3PTZ:
50 Hz: camera 01: 25 fps (720 × 720)
60 Hz: camera 01: 30 fps (720 × 720)
- Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
- Vaizdo bitų greitis32 Kbps to 16 Mbps
- H.264 tipasBaseline Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- Scalable Video Coding (SVC)H.265 and H.264 encoding
- Region of Interest (ROI)4 fixed regions for main stream and sub-stream
- Fisheye rodymas
- Montavimo tipasSupport table, wall, and ceiling mounting
- Decoding ModeSupport hardware decoding and software decoding
- Display Mode
18 display modes in total
Software decoding:
Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, half sphere, cylinder
Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ
Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, cylinder
Hardware decoding:
Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Garsas
- Garso tipasMono sound
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM
- Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)
- Garso atrankos dažnis8 kHz/16 kHz
- Pašalinių garsų šalinimasYes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
- User/HostUp to 32 users. 3 user levels, administrator, operator and user
- SaugumasPassword protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS 1.2
- Vidinė atmintisNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- KlientasiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
- NaršyklėChrome 57+, Firefox 52+, Safari 12+
- Nuotrauka
- Nuotraukos nustatymaiSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
- Diena/Naktis režimasDay/Night/Auto/Schedule/Triggered by Alarm In
- Wide Dynamic Range (WDR)Digital WDR
- Nuotraukų pagražinimasBLC, HLC, defog, 3D DNR
- Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
- Įmontuotas mikrofonasYes,two built-in microphone(s)
- Įmontuotas garsiakalbisYes
- Garsas
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija1 input, max. 12 V; 1 output, max 24 VDC, 1 A
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
- Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Sąsaja
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,
*For people counting, heat map, and intersection analysis, only notifying surveillance center is supported.
- Išmaniosios funkcijos
- Žmonių skaičiavimas
Counts people entering, exiting and passing by separately
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports target filtering by height
- Karščio žemėlapis
A graphic description of visits (calculated by people number or by dwell time) in a configured area.
Two heap map report types are available, space heat map and time heat map line chart
- Susikirtimų analitika
Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 ways
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 0.9 A, max. 11 W, two-core terminal block
PoE: 802.3af, class 0, 36 to 57 V, 0.34 A to 0.22 A, max. 12.95 W
- Medžiaga
Main body: Metal
Cover: Plastic
- Dydis167.4 mm × 152.8 mm × 50 mm (6. 6" × 6" × 2")
- Pakuotės dydis260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
- SvorisApprox. 720 g (1.6 lb.)
- Svoris su įpakavimu
Approx. 1.3 kg (2.9 lb.)
- Darbo sąlygos-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
- Kalba
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijosOne-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter
- ŠildytuvasYes
- Patvirtinimai
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Prekės kodas: KIPDS2CD6365G0ISB
