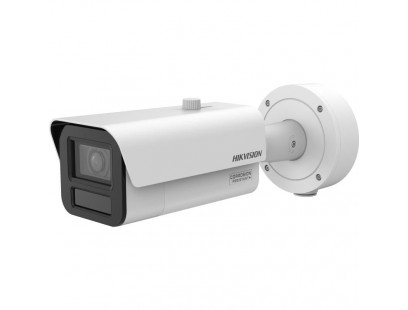

Bullet kamera Hikvision iDS-2CD7A46G2-IZHSY F2.8-12 (4MP, IR 50m, PoE, IP67, IK10, H.265+)

Bullet kamera Hikvision iDS-2CD7A46G2-IZHSY F2.8-12 (4MP, IR 50m, PoE, IP67, IK10, H.265+)
Bullet kamera Hikvision iDS-2CD7A46G2-IZHSY F2.8-12 (4MP, IR 50m, PoE, IP67, IK10, H.265+)
  • AI Open Platform
  • Model SpecificationUp to 4 models,Model type: detection model, classification model, mixed model (detection model and classification model)
  • Patvirtinimai
  • Apsauga nuo korozijosNEMA 4X (NEMA 250-2018)
  • AutomatikaEN50121-4
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
  • AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • KitaPVC FREE
  • ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
  • SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
  • Garsas
  • Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
  • Garso tipasMono sound
  • Pašalinių garsų šalinimasYes
  • Camera
  • Diena&NaktisIR cut filter,Blue glass module (less ghost phenomenon)
  • Vaizdo jutiklis1/1.8" Progressive Scan CMOS
  • Maks. rezoliucija2688 × 1520
  • Min. apšvietimasColor: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
  • Užrakto greitis1 s to 1/100,000 s
  • DORI
  • DORIWide：2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 mTele:2.8 to 12 mm:D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.2 m8 to 32 mm:D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m
  • Išmaniosios funkcijos
  • Veido atpažinimasDetects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,Uploads face with background and closed-up face pictures,Supports best shot and quick shot for capture mode,Supports dynamic mosaic mask,Gets 7 face features
  • Face ComparisonUp to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,Supports face library encryption
  • Hard Hat Detection Detects up to 30 human targets simultaneouslySupports up to 4 shield regions
  • Šilumos žemėlapisA graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,Two report types are available, space heat map and time heat map line chart.
  • Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
  • Multi-target-type DetectionSupports simultaneous detection and capture of human body, face, and vehicle,Gets 7 face features,Gets 13 human body features,Gets 2 vehicle features,Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,Supports dynamic mosaic mask
  • On/Off Duty DetectionSupports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: absence detection, on/off duty detectionSupports parameter settings: person on duty, absence duration
  • Žmonių skaičiavimasSupports Multi-Dimension People Counting,Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),Supports real-time uploading and uploading by statistic cycle,Supports generating daily, weekly, monthly or annually reports,Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,Supports face feature deduplication,Supports people flow data replenishment
  • Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggering
  • Queue ManagementSupports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: regional people queuing-up, waiting time detectionGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysisSupports real-time data uploading and scheduled data uploadingRegional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to thresholdWaiting time detection: supports 1 alarm trigger condition, including greater than threshold
  • Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage methodSupports 3 detection modes: people density detection, number of people exception detection, waiting time exception detectionSupports parameter settings: alarm times per exception, alarm interval, first alarm delaySupports searching real-time number of peoplePeople density detection: supports scheduled uploading, number of people change uploading, congestion level uploadingNumber of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
  • Funkcijos
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
  • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Išmaniosios funkcijosscene change detection,audio exception detection,defocus detection
  • Bendrieji duomenys
  • Rasos šalinimasYes
  • Įrenginio valdymasSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
  • MatmenysWith -Y: Ø140 mm × 377.4 mm (Ø5.5" × 14.9"), Without -Y: Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8")
  • Pagrindinės funkcijosHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
  • ŠildytuvasYes
  • Integrated Connector Panel-Y: No
  • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • MedžiagaAluminum alloy body
  • Pakuotės dydis425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
  • Energijathree-core terminal block,12 VDC ± 20%, 1.88 A, max. 22.56 W,24 VAC ± 20%, 1.57 A, max. 21.5 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
  • Darbo sąlygos-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
  • Sandėliavimo sąlygos-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
  • SvorisApprox. 2170 g (4.78 lb.)
  • Svoris su įpakavimuApprox. 3275 g (7.22 lb.)
  • Apšvietimas
  • IR bangos ilgis850 nm
  • Išmanus papildomas apšvietimasYes
  • Papildomo apšvietimo diapazonas2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m
  • Papildomo apšviešimo tipasIR
  • Nuotrauka
  • Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger
  • Nuotraukų pagražinimasBLC,HLC,3D DNR,Distortion Correction,Defog
  • Nuotraukos parametrų keitiklisYes
  • Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Vaizdo stabilizavimasEIS
  • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Privatumo kaukė8 programmable polygon privacy masks
  • SNR≥ 52 dB
  • Wide Dynamic Range (WDR)150 dB
  • Sąsaja
  • Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
  • Garsas1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Išėjimo galia12 VDC, max. 100 mA
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Perkrovimo mygtukasYes
  • Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
  • Objektyvas
  • Diafragma2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73
  • Focal Length & FOV2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1°8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
  • FokusavimasAuto,Semi-auto,Manual
  • Rainelės tipasP-iris
  • Mobile Communication
  • DažnisNO
  • SIM Card TypeNO
  • StandartasNO
  • Tinklas
  • APIISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
  • KlientasiVMS-4200,Hik-Connect,Hik-Central
  • Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
  • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
  • Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
  • NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Vaizdas
  • Bitų dažnio valdymasCBR,VBR
  • Penktasis srautas50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Ketvirtas srautas50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • H.264 tipasBaseline Profile,Main Profile,High Profile
  • H.265 tipasMain Profile
  • Pagrindinis srautasMonitoring mode:50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)*High frame rate is supported under monitoring mode only.smart mode:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Region of Interest (ROI)4 fixed regions for each stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Antrinis srautas50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Tikslinis apkarpymasYes
  • Trečias srautas50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Vaizdo bitų dažnis32 Kbps to 8 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
  • e-PTZSupport Patrol and Auto Tracking settings
