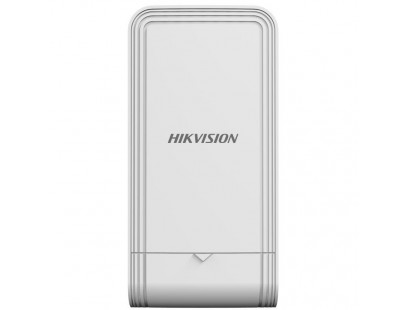

Belaidis LAN perdavimas Hikvision DS-3WF03C-5AC/O(V3) (5GHz, 867Mbps, 15km)

Patvirtinimai
Cheminių komponentų sertifikavimasCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015)
RadioEN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247
SaugumasUL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017)

Bendrieji duomenys
Bendras svoris0.807 kg (1.779 lb)
Installation ModePole mounting
Grynas svoris0.307 kg (0.677 lb)
Pakuotės Matmenys (P × A × G)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
PakuotėjeWireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 1000 MB PoE injector × 1, binding tape × 2, quick start guide × 1
Packing MethodSingle unit packing
Energijos suvartojimas3 W for typical (1-ch 2MP IPC), Max. 7.5 W
Produkto matmenys (P × A × G)92 mm × 187 mm × 58 mm (3.62" × 7.36" × 2.28")
Laikymo drėgnumas5% to 95% (no condensation)
Laikymo temperatūra-40°C to 85°C (-40°F to 185°F)
Darbinė drėgmė5% to 95% (no condensation)
Darbinė temperatūra-30°C to 70°C (-22°F to 158°F)

Tinklo parametrai
Networking ModePoint to point: Support up to 4-ch IPC (2MP) in Max. 15 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 5 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 5 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection

Programinės įrangos funkcijos
Application FunctionTDMA, DFS, TPC,IFM,IPM
Channel SelectionAuto/manual selection
Kanalo plotis20/40/80 MHz
Management MethodWeb, HCP
ProtokolaiNTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
Security MechanismWireless network name hidden
Security ModeWPA2-PSK
Sistemos žurnalasSyslog, control center information
UpgradeWeb, iVMS-4200

Belaidžio ryšio parametrai
Antenna AngleBeamwidth [3dB] (35°± 5°)
Antenos stiprinimas12 dBi
Max. Transmission Rate of Air Interface≤ 867 Mbps
Receiving Sensitivity-60 ± 2 dBm@AC80 -MCS9; -86 ± 2 dBm@AC80 -MCS0
Perdavimo galia27 dBm (Note: Transmitting power may vary with local regulations.)
Belaidžio ryšio standartasIEEE 802.11/a/n/ac
Working Frequency Band5150 to 5250 MHz5250 to 5350 MHz (DFS)5470 to 5725 MHz (DFS)5725 to 5850 MHz(Note: Available channel may vary with local regulations.)
