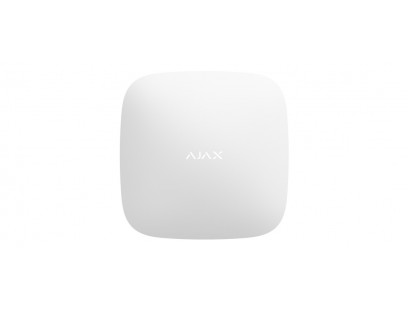

Belaidis Ajax ryšio kartotuvas REX 38205.37.WH1 (balta)

Jungčių galimybės
Prijungtų ReX Jeweller įrenginių skaičius prie valdymo pultoup to 5, Depends on the hub model.
Prijungtų įrenginių prie ReX Jeweller skaičiusup to 199, Depends on the hub model. Only Hub 2 Plus Jeweller and Hub 2 (4G) Jeweller are under certification by UL.

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz* 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
Maksimali efektyvi spinduliuojama galia (ERP)up to 25 mW, Automatic power control to reduce power consumption and radio interference.
Radijo signalo moduliacijaGFSK
Radijo ryšio veikimo nuotolisup to 5,900 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility
Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliaiTo prevent radio interference and jamming., Learn more

Apsauga nuo sabotažo
Sabotažo signalasNotifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more
Apsauga nuo klastojimodevice authentication
Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more

Maitinimas
Pagrindinis110–240 V, 50/60 Hz, Up to 6 W of mains power consumption.
Atsarginės kopijosbuilt-in backup battery Rechargeable Li-ion Polymer Battery XK 953562T 3.7 V⎓, 2 Ah, Calculated battery life:, Up to 24 hours of backup battery life when Ethernet is disabled., Up to 35 hours of backup battery life., Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity., * From the backup battery after the loss of the main power supply., The range extender manufactured after October 7, 2022 , has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually., Learn more, Manufacturer Dongguan Lean Power, UL listed.
Tipastype A
Ramioji įrenginio srovės sąnauda esant nominaliai įtampai11.4 mA
Maksimali įrenginio srovės sąnauda esant nominaliai įtampai14 mA
Maža baterijos įtampa3.7 V⎓
Mažos baterijos atsigavimo įtampa4.1 V⎓
Galutinė baterijos įtampa3.6 V⎓, Device is switched off.
Minimali atsarginės baterijos energija įkrautoje būsenoje100%
Alternatyva12 V⎓, Connected via an alternative power supply unit * 12V PSU for Hub/Hub Plus/ReX which is sold separately ., Learn more, * Not evaluated by UL.

Korpusas
Matmenys6.42″ × 6.42″ × 1.42″
Svoris11.64 oz
Darbinė temperatūros ribafrom 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Drėgmėup to 75%
Apsaugos klasėIP20

Kiekis
