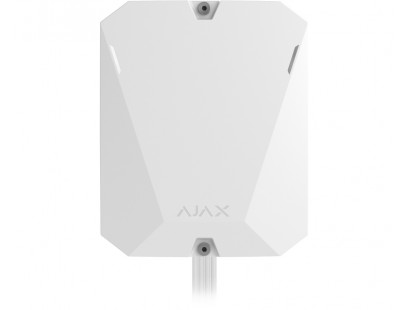

Bevielė centralė Ajax Hub Hybrid (Baltas)

Bevielė centralė Ajax Hub Hybrid (Baltas)
Bevielė centralė Ajax Hub Hybrid (Baltas)
  • Talpa
  • Ajax įrenginiaiup to 100, Wired and wireless devices in any proportion., 5 range extenders max., 10 sirens or keypads with a built-in siren max.
  • Kameros arba DVR įrenginiaiup to 25, RTSP support., Seamless integration with the Dahua, Hikvision,, Safire, EZVIZ, Uniview IP cameras and DVRs., Learn more
  • Vartotojaiup to 50, Any number of admin users within the limit., PRO accounts for installers and monitoring companies., Access management for regular users.
  • Automatizavimo scenarijaiup to 32, Alarm reactions., Scheduled actions., Security mode changing reactions., Temperature changing reactions., Humidity changing reactions., Reactions to changes in CO₂ concentration., Reactions to pressing the Button., Learn more
  • Saugumo grupėsup to 9, Learn more
  • Patalposup to 50, Learn more
  • Įvykių žurnalasup to 1000 events, Events are saved on the non-volatile onboard flash memory.
  • Laidinis ryšys
  • Fibra ryšio technologijaProprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection., It features:, Two-way communication., Advanced anti-sabotage., Instant notifications., Remote configuration via the Ajax apps., Learn more
  • Suderinamas laidas4–core cable, Bus connection.
  • įvestis8 bus lines, Compatible with Fibra devices only.
  • Bus linijos ilgisup to 6.500 ft, When using the U/UTP cat.5 twisted pair., Calculate the line length at the facility
  • Įrenginių maitinimo šaltinisup to 14.4 W, For all connected wired devices., Calculate the power supply of devices
  • Išėjimo įtampos diapazonas23–25.1 V⎓
  • TopologijosStar, Ring, In the line breakage event, the ring splits into two working segments, the devices continue to operate, and the system notifies a security company and users about the incident., Learn more
  • Įrenginių apklausos intervalasfrom 12 to 300 s, Adjusted by PRO or user with admin rights in the Ajax app.
  • Šifruotas ryšys
  • Belaidis ryšys
  • Jeweller ryšio technologijaProprietary wireless communication technology to transmit alarms and events., It features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., nstant notifications., Remote configuration via the Ajax apps., Learn more
  • Dažnių juostos866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the region of sales.
  • Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW, Featured automatic power control to reduce power consumption and noise interference.
  • Radijo signalo moduliacijaGFSK
  • Radijo signalo veikimo nuotolisup to 6.500 ft, Between the hub and connected devices (in an open space). Maximum range depends on the connected device., Calculate radio signal range at the facility
  • Apklausos intervalasfrom 12 to 300 s, Adjusted by PRO or user with admin rights in the Ajax app.
  • Šifruotas ryšysAll the data stored and transmitted are protected by block encryption with a dynamic key.
  • Radijo dažnio šuoliaiLearn more
  • Wings ryšio technologijaProprietary wireless communication technology to transmit photo verifications., It features:, Two-way communication., Block encryption featuring a dynamic key., Advanced anti-sabotage., Package re-uploading in case of transmission errors., Photo delivery check., Learn more
  • Dažnių juostos866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the region of sales.
  • Radijo signalo veikimo nuotolisup to 5.600 ft, Between the hub and connected devices (in an open space). Maximum range depends on the connected device., Calculate radio signal range at the facility
  • Radijo dažnio šuoliaiRadio communication uses frequency hopping to prevent interception and jamming., Learn more
  • Ryšio kanalai
  • Ethernet1 × 8P8C socket, Up to 100 Mbps.
  • Mobilusis ryšys2 × micro–SIM slot
  • Mobiliojo ryšio dažnių juostos2G, (GSM900/DCS1800 (B3/B8)), 3G, (WCDMA 850/900/2100 (B1/B5/B8)), 4G/LTE, (FDD B1/B3/B5/B7/B8/B20)
  • Automatinis perjungimas tarp ryšio kanalųSwitching between SIMs — up to 4 minutes., Switching between 4G, 3G, and 2G networks of one SIM — instantly., Switching between Ethernet and SIM — instantly.
  • Ryšio kanalų prioritetų nustatymas1. Ethernet 2. Cellular connection, Communication channels work in parallel to increase system reliability. Most of the data is transmitted via Ethernet.
  • Pavojaus signalo perdavimo sistemos kategorijosSP2, SP5, DP3
  • Valdymo pulto veikimo būdasPass-through
  • Signalo saugumasS2, Substitution security.
  • Informacijos saugumasI2
  • Šifravimo algoritmasAES 128
  • Pranešimai
  • Palaikomi pranešimų tipaiPush, SMS, Calls, Learn more
  • Įvykių tipaiAlarms, Malfunctions, Events, Security mode changing, The notification types are configured individually for each user. Notifications could be customized for A–F schemes according to EN 50131 requirements.
  • Nuotraukų patikra
  • Nuotraukų patikros tipaiPhoto by alarm, Photo by scenario, Photo on demand, Photo by schedule, The Photo by Schedule feature is available for hubs with firmware version OS Malevich 2.19 or higher., More about photo by scenario, More about photo on demand, More about photo by schedule
  • Nuotraukos pristatymo laikasup to 9 s, by default., Learn more
  • Nuotraukos raiškaup to 640 × 480 pixels, Depends on the detector.
  • Number of photos in a series:from 1 to 5 pictures
  • Stebėjimas
  • Palaikomi protokolaiSurGard (Contact ID), SIA (DC-09), Other proprietary protocols, Learn more
  • Įvykių tipaiSystem alarms and events, Photo verifications, Panic button coordinates, CMS software with photo verification support
  • Maitinimas
  • Pagrindinis maitinimo šaltinio tipasType A
  • Įrenginio darbinės AC įtampos diapazonas100–240 V~, 50/60 Hz, From the main power supply. Up to 10 W of mains power consumption.
  • Įrenginio darbinės DC įtampos diapazonas10.5–15 V⎓, From the backup battery (not included). Hub has space in the enclosure and rails for installing batteries with a capacity of 4, 7, or 9 Ah.
  • Autonominis veikimasup to 60 hours, Superior Hub Hybrid with a 7 Ah backup battery can power a system of 30 wired devices for 60 hours. Wireless devices operate on batteries and do not require additional power supply., Learn more, The Battery Power Saver feature allows extending the backup battery life., Learn more
  • Maža baterijos įtampa11.7 V⎓
  • Mažos baterijos atsigavimo įtampa12.9 V⎓
  • Galutinė baterijos įtampa11 V⎓, Superior Hub Hybrid is switched off.
  • Maksimali baterijos išėjimo virpesių įtampa nuo viršūnės iki viršūnės220 mV⎓
  • Minimali atsarginės baterijos energijos lygis įkrautoje būsenoje100 %
  • Srovės suvartojimas
  • Didžiausia vardinė išvestis0.53 A
  • Maksimali reikšmė esant nominaliai įtampai200 mA
  • Ramioji būsena esant nominaliai įtampai130 mA
  • Vidurkis*up to 93 mA, When GSM and Ethernet are enabled., up to 72 mA, When Ethernet is disabled., * From the backup battery after the loss of the main power supply.
  • Korpusas
  • Matmenys7.56″ × 9.37″ × 3.94″
  • Balto įrenginio svoris29.52 oz
  • Juodo įrenginio svoris26.98 oz
  • Darbo temperatūros diapazonasfrom 14°F to 104°F
  • Drėgmėup to 75%
  • Apsaugos klasėIP30, IK06
