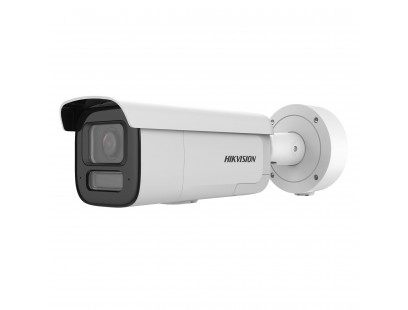

Hikvision Bullet DS-2CD2666G2H-IZS 2.8–12mm (balta, 6MP, IR 60 m, AcuSense, DarkFighter)

Patvirtinimai
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7,RCM: AS/NZS CISPR 32: 2015,KC: KN32: 2015, KN35: 2015
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1

Garsas
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimasYes

DORI
DORIWide: D: 74.3m, O: 29.5 m, R: 14.9 m, I: 7.4 mTele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

Išmaniosios funkcijos
Veido atpažinimasYes
Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Išmaniosios funkcijosScene change detection

Bendras
MatmenysØ140 mm × 333.8 mm (Ø5.5" × 13.1")
Pagrindinės funkcijosHeartbeat,mirror,password reset via email,pixel counter,anti-banding
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
MedžiagaFront cover: Metal, body: Metal, bracket: Metal
Pakuotės dydis385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Energija 12 VDC ± 25%, 1.21 A, max. 14.5 W,two-core terminal block,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 18 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 1520 g (3.4 lb.)
Svoris su įpakavimuApprox. 2530 g (5.6 lb.)

Nuotrauka
Diena/Naktis režimasDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR
Nuotraukos parametrų keitiklisYes
Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė4 programmable polygon privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB

Sąsaja
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Garsas1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukasYes

Objektyvas
DiafragmaF1.2
Ryškumo gylis1 m to ∞
Focal Length & FOV2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Rainelės tipasFixed
Lęšio montavimasIntegrated
Objektyvo tipasVarifocal lens, motorized lens, 2.8 to 12 mm

Tinklas
KlientasiVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Vaizdas
Bitų dažnio valdymasCBR,VBR
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautas50 Hz:20 fps (3200 × 1800)25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:20 fps (3200 × 1800)30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Vaizdo bitų greitis32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
