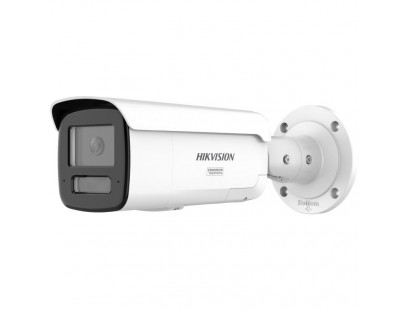

Hikvision bullet DS-2CD2T87G3-LIS2UY/SL F2.8 (Balta, 8MP, IR + LED 60m, ColorVu)

Objektyvas
Objektyvo tipasFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Lęšio montavimasM16
Rainelės tipasFixed
DiafragmaF1.0
Ryškumo gylis2.8 mm: 3.3 m to ∞4 mm: 3.8 m to ∞

DORI
DORI2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Vaizdas
Pagrindinis srautas50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Bitų dažnio valdymasCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream

Garsas
Garso tipasMono sound
Garso suspaudimas G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimasYes

Tinklas
Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
SaugaPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
KlientasiVMS-4200,Hik-Connect,Hik-Central
NaršyklėPlug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,Local service: Chrome 80+, Firefox 80+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR,Distortion Correction,Defog
SNR≥ 52 dB
Wide Dynamic Range (WDR)130 dB
Vaizdo stabilizavimasEIS
Privatumo kaukė4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Įmontuotas garsiakalbisMax. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
GarsasBuilt-in Microphone:Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funkcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Išmaniosios funkcijosScene change detection
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,trigger capture,send email,trigger alarm output,trigger recording,audible warning,strobe light flashing

Išmaniosios funkcijos
Veido atpažinimasYes
Perimetro apsaugaLine crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Bendrieji duomenys
Energija12 VDC ± 25%, 1.41 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 18 W
MedžiagaFront cover: metal, body: metal, bracket: Metal
Matmenys286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Pakuotės dydis386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Svoris Approx. 1250 g (2.8 lb.)
Svoris su įpakavimuApprox. 1800 g (4.0 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light/SRB model: Red and Blue Light/SL model: White Light

Patvirtinimai
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
SaugumasUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
AplinkosaugaCE-RoHS: 2011/65/EU
ApsaugaIP67: IEC 60529-2013
Apsauga nuo korozijosNEMA 4X (NEMA 250-2018)
