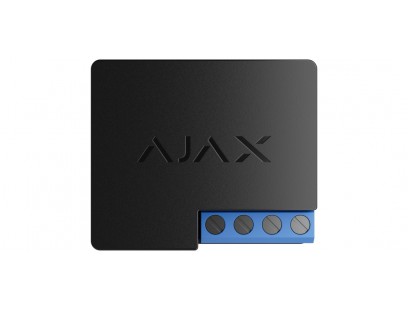

Bevielis relinis modulis Ajax WallSwitch 38189.13.BL1 (230V, 13A)

Maitinimas
Maitinimo įtampa110–230 V ± 10%, 50/60 Hz
Maksimali pastovi apkrovos srovė13 A
Išvesties galiaup to 3.0 kW (resistive load at 230 V~), up to 1.5 kW (resistive load at 110 V~)
Vidutinės sąnaudosup to 1 W
Srovės apsaugamore than 11 A (when Overcurrent protection is enabled), more than 13 A (when Overcurrent protection is disabled), Once the current exceeds the specified level, the device turns off automatically.
Įtampos apsauga 230 V~ elektros tinkluimin: 184 V~, max: 253 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
Įtampos apsauga 110 V~ elektros tinkluimin: 92 V~, max: 132 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
Temperatūros apsaugaover 149 °F, If protection is triggered, the device turns off.
Apsaugos nuo elektros smūgio klasėClass II

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
Maksimali efektyvi spinduliuojama galia (ERP)up to 25 mW
Radijo signalo moduliacijaGFSK
Radijo ryšio veikimo nuotolisup to 3,250 ft, Between the relay and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliaiTo prevent radio interference and jamming., Learn more

Pagrindinės savybės
Valdymas per išmanųjį telefonąThe user can set up the relay configurations and receive notifications in an Ajax app.
Automatizavimo scenarijaiBy arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO 2 concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
Energijos sąnaudų stebėjimo priemonėControl of the current, voltage, power, and electric energy consumed by connected appliances.
Adjustable pulse duration 2from 1 to 255 s
Veikimo režimaipulse 2, bistable, 2 Available on devices with firmware version 5.54.1.0 or later manufactured after March 5, 2020.
Kontakto būsenanormally open, normally closed

Apsauga nuo sabotažo
Apsauga nuo klastojimodevice authentication
Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
