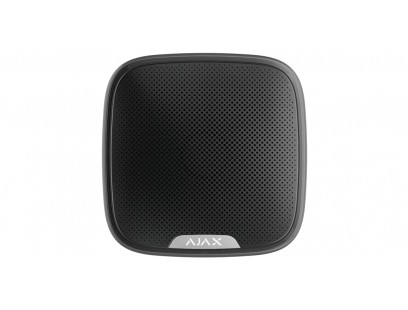

Bevielė lauko sirena Ajax StreetSiren 38179.07.BL1 (juoda)

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz * 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
Radijo signalo moduliacijaGFSK
Radijo ryšio veikimo nuotolisup to 4,500 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliaiTo prevent radio interference and jamming., Learn more

Pagrindinės savybės
Aliarmo tipasacoustic and LED, Buzzer and LED frame.
Įspėjamojo įrenginio tipastype X, External, self-powered, and remote power source compliant with EN 50131-6.
Aliarmo garsumasfrom 85 to 113 dB at a distance of 3.3 ft, Adjusted by PRO or user with admin rights in the Ajax app.
Aliarmo trukmėfrom 3 s to 3 min, Alarm duration up to 15 minutes is available only for siren with firmware version NA 5.60.4.14 or higher and with Quiet or Loud alarm volume., Adjusted by PRO or user with admin rights in the Ajax app.
Sirenos garso dažnis1.60−4.5 kHz
Akustinio išėjimo tipastone
Įvykių indikacijaAlarms., Delays when entering/leaving., Security mode., Security mode changing., After-alarm indication.
Garso signalasThe siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed., Learn more

Apsauga nuo sabotažo
Sabotažo signalasNotifications on attempts to open the siren’s enclosure., Learn more
Akselerometro signalasNotifications on attempts to move or shake the siren, or detach it from the surface.
Apsauga nuo klastojimodevice authentication
Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more

Pagrindinis maitinimo šaltinis
Baterija4 × CR123A, Pre-installed.
TipasType C.
Apskaičiuotas baterijos veikimo laikasup to 5 years, Learn more
Sirenos darbinės įtampos diapazonas3.65−6.2 V⎓
Sirenos nominali darbinė įtampa6 V⎓
Sirenos ramybės būsenos srovės suvartojimas esant nominaliai įtampai71 µA
Didžiausias sirenos srovės suvartojimas esant nominaliai įtampai1 A, When the siren sounds at the Very Loud volume level.
Vidutinis sirenos srovės suvartojimas esant nominaliai įtampai0.3 A, When the siren sounds at the default volume level. Regardless of the arming mode.
Pilna baterijos talpa6,400 mAh, Capacity of each battery is 1,600 mAh.
Maža baterijos įtampa4.25 V⎓
Mažos baterijos atsigavimo įtampa5.05 V⎓
Galutinė baterijos įtampa3.65 V⎓, Device is switched off.
Galutinė baterijos talpa460 mAh
GamintojasHuiderui or Panasonic, UL listed.

Papildomas maitinimo šaltinis
Nuotolinio maitinimo šaltinio darbinė įtampa6−20 V⎓
Nuotolinio maitinimo šaltinio nominali įtampa12 V⎓
Sirenos ramybės būsenos srovės suvartojimas esant nominaliai įtampai25 mA
Vidutinis sirenos srovės suvartojimas esant nominaliai įtampai0.2 A, When the siren sounds at the default volume level. Regardless of the arming mode.
Didžiausias sirenos srovės suvartojimas esant nominaliai įtampai0.7 A, When the siren sounds at the Very Loud volume level.

Korpusas
Matmenys7.87″ × 7.87″ × 2.0″
Svoris18.63 oz
Darbinė temperatūros ribafrom −13°F to 140°F, Temperature range from -31 °F (-35 °C) to 150 °F (+66 °C) is certified according to UL standards, and from -40 °F (-40 °C) to 150 °F (+66 °C) — according to ULC standards.
Drėgmėup to 95%, Humidity of up to 93% is certified according to UL/ULC standards.
Apsaugos klasėIP54
