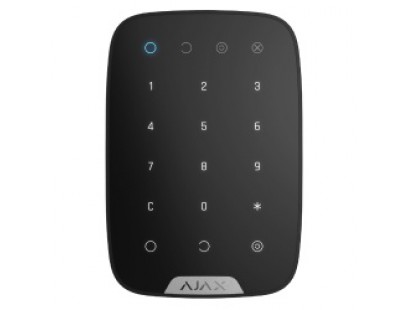

Bevielė klaviatūra Ajax Keypad 38248.12.BL1 (Juoda)

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz * 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
Radijo signalo moduliacijaGFSK
Radijo signalo veikimo nuotolisup to 5,500 ft, Between the keypad and the hub or range extender in an open space., Calculate radio signal range at the facility
Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliaiTo prevent radio interference and jamming., Learn more

Pagrindinės savybės
Jutiklio tipascapacitive
Gedimų ir saugumo režimo indikacijaWhen KeyPad is active, it notifies with LED indication of the security mode, problems with detectors, or communication loss with the hub.
Funkcinis mygtukasOperates in one of the modes., alarm, The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system., mute fire alarm, Mutes interconnected fire detectors alarms. Only FireProtect 2 RB (Heat/Smoke/CO) UL Jeweller and FireProtect 2 RB (Heat/Smoke) UL Jeweller detectors are certified according to UL/ULC standards., Learn more, off, The button is disabled.
Prieigos kodaiup to 200 personal codes, One code per each user. The number of personal access codes depends on the hub model ., 1 keypad code, One code per KeyPad.
Priverstiniai kodaiup to 200 personal codes, One code per each user. The number of personal duress codes depends on the hub model ., 1 keypad code, One code per KeyPad.
Kodai neregistruotiems asmenimsup to 99 personal codes, For people who are not registered in the system. The number of such codes depends on the hub model .
Grupės saugumo valdymasEnter the general keypad code and the group ID to manage group security.
ACE typetype B

Apsauga nuo sabotažo
Apsauga nuo kodo spėjimoKeyPad locks for 3–180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. PRO or user with admin rights can adjust the lock time in the Ajax app.
Sabotažo signalasNotifications on attempts to detach the keypad from the surface or remove it from the mounting panel., Learn more
Apsauga nuo klastojimodevice authentication
Ryšio praradimo aptikimasafter 36 s, Depends on the Jeweller or Jeweller/Fibra settings., Learn more

Korpusas
Matmenys5.90″ × 4.05″ × 0.55″
Svoris6.95 oz
Darbinė temperatūros ribafrom 14°F to 104°F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Drėgmėup to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
