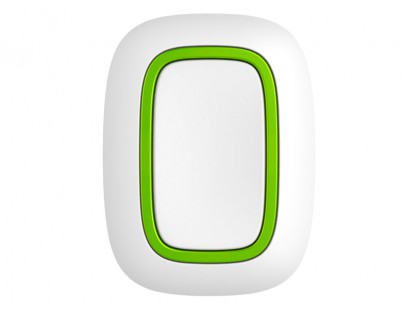

Dviejų funkcijų mygtukas AJAX Button (Baltas)

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz * 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
Radijo signalo moduliacijaGFSK
Radijo ryšio veikimo nuotolisup to 1,000 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliaiTo prevent radio interference and jamming., Learn more

Pagrindinės savybės
Mygtukų skaičius1
Adjustable event typesIntrusion, Fire, Auxiliary alarm, Panic button, Gas alarm, Malfunction, Leakage, Custom, If the Custom event type is selected, event notifications will not be sent to the security company monitoring station, and system users will not receive an SMS.
LED apšvietimas, rodantis komandos pristatymąThe LED brightness is adjusted in Ajax apps.
Protection against accidental pressinglong or double press
Supervising featureButton will update the status of its battery every day. This feature is available with OS Malevich 2.16 and higher.

Apsauga nuo sabotažo
Apsauga nuo klastojimodevice authentication
Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more

Maitinimas
Baterija1 × CR2032, Pre-installed.
Tipastype C
Apskaičiuotas baterijos veikimo laikasup to 5 years, Learn more
Button’s operating voltage range1.8−3.3 V⎓
Button’s nominal operating voltage3 V⎓
Quiescent button’s current consumption at nominal voltage0.5 μA, When the Battery charge auto-check toggle is disabled., 2.02 μA, When the Battery charge auto-check toggle is enabled.
Maximum button’s current consumption at nominal voltage27.8 mA
Pilna baterijos talpa235 mAh
Maža baterijos įtampa2.2 V⎓
Mažos baterijos atsigavimo įtampa2.3 V⎓
Galutinė baterijos įtampa1.8 V⎓, Device is switched off.
Galutinė baterijos talpa40 mAh
GamintojasPanasonic or Renata, UL listed.

Korpusas
Matmenys1.85″ × 1.38″ × 0.51″
Svoris0.56 oz
Darbo temperatūros diapazonasfrom 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Drėgmėup to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
Apsaugos klasėIP55
