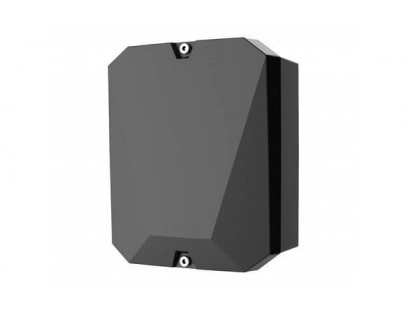

Belaidis modulis AJAX MultiTransmitter (Juodas)

Belaidis modulis AJAX MultiTransmitter (Juodas)
Belaidis modulis AJAX MultiTransmitter (Juodas)
  • Bendravimas
  • Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
  • Dažnių juostos866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz * 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
  • Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW
  • Radijo signalo moduliacijaGFSK
  • Radijo signalo veikimo nuotolisup to 6,500 ft, Between an integration module and a control panel (or range extender) in an open space., Calculate radio communication range
  • Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
  • Dažnių šuoliaiTo prevent radio interference and jamming., Learn more
  • Wired devices connection
  • Number of zones18 wired zones, Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
  • Ryšio tipasNC, NO, EOL, MultiTransmitter Jeweller with a firmware version lower than 2.13., NC, NO, EOL, 2EOL, 3EOL, 2EOL and 3EOL connection types are only available for MultiTransmitter Jeweller with the firmware version 2.13.0 or later. The integration module should be added to a compatible hub running on OS Malevich 2.13 or later. If Hub (4G) Jeweller is used, the control panel should be updated to OS Malevich 2.28 or later.
  • EOL resistancefrom 1 kΩ to 7.5 kΩ with 100 Ω increment, MultiTransmitter Jeweller with a firmware version lower than 2.13. EOL resistance is measured automatically in the Ajax PRO apps., from 1 kΩ to 15 kΩ for each resistor, up to 30 kΩ of total resistance, MultiTransmitter Jeweller with a firmware version 2.13 and higher. Resistance is measured automatically for each EOL resistor in the Ajax PRO apps.
  • Laido ilgisup to 1,300 ft, When using a signal cable with a 0.00034 sq. in copper-clad aluminium conductor.
  • Operacijos režimaspulse, bistable, Adjusted by a PRO or user with admin rights in the Ajax app.
  • Įvykių tipai15 event types of wired devices, Tamper alarm, Intrusion, Fire, Auxiliary alarm, Panic button, Gas alarm, Malfunction, Leakage, Glass break, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Custom, Adjusted by a PRO or a user with admin rights in the Ajax app.
  • Apsauga nuo sabotažo
  • Sabotažo signalasTwo tampers to detect the MultiTransmitter Jeweller casing opening and alert about detachment from the wall., Learn more
  • Apsauga nuo klastojimodevice authentication
  • Ryšio praradimo aptikimaswithin 36 seconds, Between a hub or range extender and MultiTransmitter Jeweller. The detection time depends on the Jeweller or Jeweller/Fibra settings.
  • Instant detection of wired connection loss, short circuits, and malfunctionswhen using EOL/2EOL/3EOL connection type, Depends on the connection type.
  • Maitinimas
  • MultiTransmitter Jeweller power supply100–240 V~, 50/60 Hz
  • Tipastype A, Power supply is used inside the supervised premises.
  • Įrenginio darbinės įtampos diapazonas100–240 V~, 50/60 Hz
  • Ramioji įrenginio srovės sąnauda esant nominaliai įtampai14.6 mA
  • Maksimali įrenginio srovės sąnauda esant nominaliai įtampai69.6 mA
  • MultiTransmitter Jeweller backup power supply12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours, MultiTransmitter Jeweller average consumption from the backup battery after the main power supply loss is up to 33 mA (without detectors). When using a 7 Ah battery, the minimum operating time at a maximum load of 1 А will be 7 hours. For autonomous work for 12 or 24 hours, the maximum load should be no more than 0.55 A and 0.28 A, respectively. The backup battery is not included in the set.
  • Maža baterijos įtampa11.4 V⎓
  • Mažos baterijos atsigavimo įtampa12.9 V⎓
  • Galutinė baterijos įtampa11.1 V⎓
  • Maksimali baterijos išėjimo virpesių įtampa nuo viršūnės iki viršūnės50 mV⎓
  • Minimali atsarginės baterijos energijos lygis įkrautoje būsenoje100%
  • Connected devices power supply10.5–15 V⎓, up to 1 A of total maximum current consumption, Two power lines powered by MultiTransmitter Jeweller for other devices. One power line for fire detectors.
  • Korpusas
  • Matmenys7.55″ × 9.37″ × 3.94″
  • Balto įrenginio svoris30.83 oz
  • Juodo įrenginio svoris28.29 oz
  • Darbo temperatūros diapazonasfrom 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
  • Drėgmėup to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
  • Apsaugos klasėIP40, IK06, The new casing version of MultiTransmitter Jeweller has light guides for the integration module LED indication, while the previous version has the LED indicator on the board.
