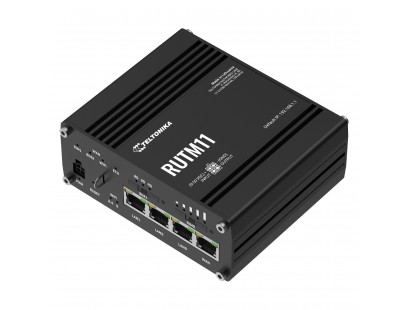

Maršrutizatorius 4 prievadų Teltonika RUTM11

Maršrutizatorius 4 prievadų Teltonika RUTM11
Maršrutizatorius 4 prievadų Teltonika RUTM11
  • Mobilus ryšys
  • Mobilus modulis4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
  • 3GPP išleidimasRelease 12
  • SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • StatusasIMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSDSupports sending and reading Unstructured Supplementary Service Data messages
  • Block/Allow listOperator block/allow list (by country or separate operators)
  • Multiple PDNPossibility to use different PDNs for multiple network access and services
  • Grupės valdymasBand lock, Used band status display
  • SIM neaktyvumo apsaugos paslaugaProvides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
  • SIM PIN kodo valdymasSIM PIN code management enables setting, changing, or disabling the SIM card's PIN
  • APNAuto APN
  • TiltasDirect connection (bridge) between mobile ISP and device on LAN
  • PerleidimasRouter assigns its mobile WAN IP address to another device on LAN
  • Bevielis ryšys
  • Belaidžio ryšio režimas802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
  • Wi-Fi saugumasWPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
  • SSID/ESSIDESSID stealth mode
  • Wi-Fi naudotojaiUp to 150 simultaneous connections
  • Belaidžio ryšio funkcijosWireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
  • Belaidžio ryšio MAC filtrasAllowlist, blocklist
  • Belaidžio ryšio QR kodų generatoriusOnce scanned, a user will automatically enter your network without needing to input login information
  • TravelMateForward Wi-Fi hotspot landing page to a subsequent connected device
  • Ethernet
  • WAN1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • LAN3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • Tinklas
  • MaršrutasStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
  • ProtokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
  • VoIP praėjimo paramaH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • UgniasienėPort forward, traffic rules, custom rules, TTL target customisation
  • Ugniasienės būsenos puslapisView all your Firewall statistics, rules, and rule counters
  • Prievadų valdymasView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
  • Tinklo topologijaVisual representation of your network, showing which devices are connected to which other devices
  • DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
  • QoS / išmanusis eilių valdymas (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNSSupported >25 service providers, others can be configured manually
  • DNS per HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
  • Tinklo atsarginės kopijosWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
  • Apkrovos balansavimasBalance Internet traffic over multiple WAN connections
  • Viešosios interneto prieigos taškasCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
  • SSHFSPossibility to mount remote file system via SSH protocol
  • VRF supportInitial virtual routing and forwarding (VRF) support
  • Eismo valdymasReal-time monitoring, wireless signal charts, traffic usage history
  • Saugumas
  • 802.1xPort-based network access control client
  • AutentifikavimasPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
  • UgniasienėPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
  • Įsilaužimo prevencijaDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLANPort and tag-based VLAN separation
  • Mobiliųjų kvotų kontrolėMobile data limit, customizable period, start time, warning limit, phone number
  • WEB filtrasBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Prieigos kontrolėFlexible access control of SSH, Web interface, CLI and Telnet
  • SSL sertifikatų generavimasLet's Encrypt and SCEP certificate generation methods
  • VPN
  • OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods
  • OpenVPN šifravimasDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
  • IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
  • GREGRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
  • StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
  • SSTPSSTP client instance support
  • ZeroTierZeroTier VPN client support
  • WireGuardWireGuard VPN client and server support
  • TincTinc offers encryption, authentication and compression in it's tunnels. Client and server support.
  • TailscaleTailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
  • OPC UA
  • Palaikomi režimaiClient, Server
  • Supported connection typesTCP
  • MODBUS
  • Palaikomi režimaiServer, Client
  • Supported connection typesTCP, USB
  • Pasirinktiniai registraiMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
  • Palaikomi duomenų formatai8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
  • DATA TO SERVER
  • ProtokolasHTTP(S), MQTT, Azure MQTT, Kinesis
  • Data to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
  • MQTT Gateway
  • Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker
  • DNP3
  • Palaikomi režimaiStation, Outstation
  • Supported connectionTCP, USB
  • DLMS
  • DLMS SupportDLMS - standard protocol for utility meter data exchange
  • Palaikomi režimaiClient
  • Supported connection typesTCP, USB
  • COSEMAllows to scan meter COSEM objects for automatic detection and configuration
  • API
  • Teltonika Networks Web API (beta) supportExpand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
  • Monitoring & Management
  • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
  • FOTAFirmware update from server, automatic notification
  • SSHSSH (v1, v2)
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
  • El. paštasReceive email message status alerts of various services
  • TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTTMQTT Broker, MQTT publisher
  • SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection
  • RMSTeltonika Remote Management System (RMS)
  • IoT platformos
  • ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
  • Cumulocity - Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
  • Azure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
  • AWS IoT CoreUtility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
  • Sistemos Characteristikos
  • ProcesoriusMediaTek, Dual-core, 880 MHz, MIPS1004Kc
  • RAM256 MB, DDR3
  • FLASH saugykla16 MB serial NOR flash, 256 MB serial NAND flash
  • Nustatymai
  • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
  • FOTAUpdate FW
  • RMSUpdate FW/configuration for multiple devices at once
  • Nustatymų įsiminimasUpdate FW without losing current configuration
  • Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
  • FIRMWARE CUSTOMISATION
  • Operacinė sistemaRutOS (OpenWrt based Linux OS)
  • KalbosBusybox shell, Lua, C, C++
  • Kūrėjo įrankiaiSDK package with build environment provided
  • GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
  • Package ManagerThe Package Manager is a service used to install additional software on the device
  • Location Tracking
  • GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
  • KoordinatėsGNSS coordinates via WebUI, SMS, TAVL, RMS
  • NMEANMEA 0183
  • NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)
  • Serverio programinė įrangaSupported server software TAVL, RMS
  • GeotvorosConfigurable multiple geofence zones
  • USB
  • Duomenų perdavimasUSB 2.0
  • NadojimasSamba share, USB-to-serial
  • Išoriniai įrenginiaiPossibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
  • Vidinės atminties formatasFAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
  • Input / Output
  • įvestis1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
  • išvestis1 x Digital Output, Open collector output, max output 50 V, 300 mA
  • ĮvykiaiEmail, RMS, SMS
  • I/O jungiklisAllows to set certain I/O conditions to initiate event
  • Energija
  • Jungtys4-pin industrial DC power socket
  • Įeinančios įtampos diapazonas9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
  • PoE (pasyvus)Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
  • Energijos naudojimasIdle: < 3.9 W, Max: < 12.3 W
  • Fizinės sąsajos
  • Ethernet4 x RJ45 ports, 10/100/1000 Mbps
  • I/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Būsenos LED indikatoriai4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
  • SIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
  • Energija1 x 4-pin power connector
  • Antenos2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
  • USB1 x USB A port for external devices
  • PerkrovimasReboot/User default reset/Factory reset button
  • Kita1 x Grounding screw
  • Fizinės specifikacijos
  • KorpusasAnodized aluminum housing and panels
  • Matmenys (P x A x G)115 x 44.2 x 95.1 mm
  • Svoris460 g
  • MontavimasDIN rail, wall mount, flat surface (all require additional kit)
  • Darbo aplinka
  • Darbo temperatūra-40 °C to 75 °C
  • Drėgmė10% to 90% non-condensing
  • IP reitingasIP30
  • Regulatory & Type Approvals
  • ReguliavimasWEE
  • EMC Emissions & Immunity
  • StandartaiEN 55032:2015 + A11:2021
  • ESDEN 61000-4-2:2009
  • Radiated ImmunityEN IEC 61000-4-3:2020
  • EFTEN 61000-4-4:2012
  • Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 + A1:2017
  • CSEN 61000-4-6:2014
  • DIPEN 61000-4-11:2020
  • RF
  • StandartaiEN 301 908-1 V15.2.1
  • Saugumas
  • StandartaiCE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
  • Safety (Ordinary Locations)
  • StandartaiCE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
