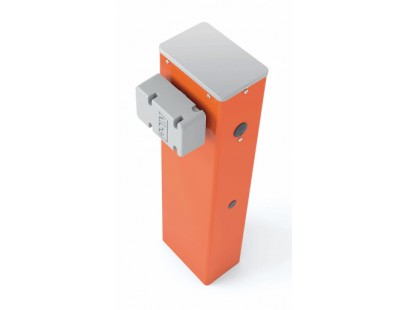

Kelio užtvaras NICE WIDEL (iki 7m)
- Bendra informacija
- ModelisWIDEL
- Strypo ilgisUp to 7 m (composed of 3 to 5 modular aluminium bars with expansion joints)
- NaudojimasIdeal for large vehicle entrances in industrial zones, logistics areas, and wide roadways
- Variklio tipas24 VDC gearmotor, non-reversible, integrated control unit
- Energijos suvartojimas300 W
- Maitinimo šaltinis230 VAC 50/60 Hz input, 24 VDC motor output
- Current draw1.1 A
- Atidarymo greitis6 to 10 seconds (adjustable electronically)
- Sukimo momentas300 Nm
- Darbo ciklasUp to 300 cycles/hour
- Apsaugos klasėIP54
- Darbinė temperatūra-20°C to +55°C
- Korpuso medžiagaGalvanised steel with orange polyester powder coating (WIDEL); also available in white (WIDELWH), grey (WIDELGR1), and stainless steel (WIDELI)
- Matmenys (I x P x A)320 x 205 x 1000 mm
- SvorisApprox. 48 kg
- Valdymo blokasIntegrated at the bottom of the cabinet, joystick interface, compatible with full Wide series
- Saugos funkcijosObstacle detection via encoder, electromechanical limit switch, self-diagnostic features, maximum impact resistance
- Atsileidimo mechanizmasTriangular metal key release, protected from the elements and manipulation
- MontavimasBar can be installed on either right or left side
- Atsarginė baterijaCompatible with PS324 (24 V battery + integrated charger)
- Connectivity and Smart FeaturesBlueBUS, BiDi, Yubii, Solemyo (solar kit), Opera system; programmable via MyNice Pro App, BiDi-WiFi, Pro-View
- Budėjimo režimasAutomatic low energy consumption when idle
- SuderinamumasWorks with ERA INTI, ERA ONE, MYGO, DOMÌ transmitters, BlueBUS sensors, ELDC lights, loop detectors LP21 and LP22
- Accessories supportedXBA19 (aluminium bar modular segments), XBA4 (signal light), WIA10 (swivel), SIA1 (anchoring base), WA12 (bar support stand), WA11 (bar joint)
- SertifikataiCE compliant
- Gamintojas: Nice
- Prekės kodas: AVWIDELR10
- Prieinamumas: Sandėlyje
Savo užsakymą apmokėk mažomis mėnesinėmis įmokomis. Sutartį pasirašyk m. parašu, Smart ID programėle ar e. bankininkyste. 27.08 EUR / 60 months
- 990.20€
