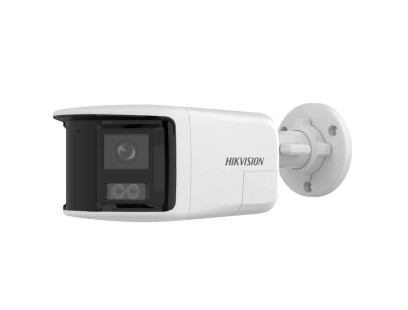

Hikvision bullet DS-2CD1T63G2P-LIUF/SL F2.8 (balta, 6 MP, 30 m LED)

Patvirtinimai
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
SaugumasCB: IEC 62368-1: 2014+A11,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Garsas
Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz
Garso tipasMono sound
Pašalinių garsų šalinimasYes

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
SąsajaUpload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing

Bendra informacija
Matmenys103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2")
Flashing Light/SRB model: Red and Blue Light/SL model: White Light
Pagrindinės funkcijosHeartbeat,anti-banding,password protection,password reset via email
KalbaEnglish, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
MedžiagaFront cover: Metal, body: Plastic, bracket: Metal
Pakuotės dydis260 mm × 140 mm × 115 mm (10.2" × 5.5" × 4.5")
Energija12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 11.5 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 560 g (1.2 lb.)
Svoris su įpakavimuApprox. 835 g (1.8 lb.)

Nuotrauka
Dienos/nakties perjungiklisDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR
Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė4 programmable polygon privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB

Sąsaja
Integruotas mikrofonasYes,1 built-in microphone
Integruotas garsiakalbisYes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukasYes

Tinklas
APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
KlientasiVMS-4200,Hik-Connect
ProtokolaiTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
SaugumasPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in required live view: IE 11,Local service: Chrome 80+, Firefox 80+, Edge 89+

Vaizdas
Bitų dažnio valdymasCBR,VBR
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautas50 Hz: 20 fps (3632 × 1632)60 Hz: 20 fps (3632 × 1632)
Region of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautas50 Hz: 20 fps (1200× 536, 960 × 432)60 Hz: 20 fps (1200× 536, 960 × 432)
Vaizdo bitų dažnis32 Kbps to 16 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
